Create frames of movement-environment interaction graphs for animation

frames_graph creates a list of ggplot2 graphs displaying movement-environment interaction. Each object represents a single frame. Each frame can be viewed or modified individually. The returned list of frames can be animated using animate_frames.

Usage

frames_graph(
  m,
  r,
  r_type = "gradient",
  fade_raster = FALSE,
  crop_raster = TRUE,
  return_data = FALSE,
  graph_type = "flow",
  path_size = 1,
  path_colours = NA,
  path_legend = TRUE,
  path_legend_title = "Names",
  val_min = NULL,
  val_max = NULL,
  val_by = 0.1,
  ...,
  verbose = T
)

Arguments

m

move2 object of uniform time scale and time lag as returned by align_move. Can contain a column named colour to control path colours (see details below).

r

terra object, either a SpatRaster (mono-temporal) or a SpatRasterDataset (multi-temporal). In case of the latter, times of `r` must be defined as 'POSIXct' (see time and details below).

r_type

character, either "gradient" or "discrete". Ignored, if r contains three bands, which are treated as RGB.

fade_raster

logical, if TRUE, r is interpolated over time. If FALSE, r elements are assigned to those frames closest to the equivalent times of r.

crop_raster

logical, whether to crop rasters in r to frame extents before plotting or not.

return_data

logical, if TRUE, instead of a list of frames, a data.frame containing the values extracted from r_list per individual, location and time is returned. This data.frame can be used to create your own multi- or mono-temporal ggplot2 movement-environemnt interaction graphs.

graph_type

character, defines the type of multi-temporal graph that should be drawn as frames. Currently supported graphs are:

"flow", a time flow graph with frame time on the x axis and values of the visited cell at x on the y axis per individual track
"hist", a cumulative histogram with cell values on the x axis and time-cumulative counts of visits on the y axis per individual track.

path_size

numeric, size of each path.

path_colours

character, a vector of colours. Must be of same length as number of individual tracks in m and refers to the order of tracks in m. If undefined (NA) and m contains a column named colour, colours provided within m are used (see details). Othwersie, colours are selected from a standard rainbow palette per individual track.

path_legend

logical, wether to add a path legend from m or not. Legend tracks and colours will be ordered by the tracks' temporal apperances, not by their order in m.

path_legend_title

character, path legend title. Default is "Names".

val_min

numeric, minimum value of the value axis. If undefined, the minimum is collected automatically.

val_max

numeric, maximum value of the value axis. If undefined, the maximum is collected automatically.

val_by

numeric, increment of the value axis sequence. Default is 0.1. If graph_type = "discrete", this value should be an integer of 1 or greater.

...

additional arguments, currently unused.

verbose

logical, if TRUE, messages and progress information are displayed on the console (default).

Value

An object of class moveVis. If return_data is TRUE, a data.frame is returned (see return_data).

Details

To later on side-by-side join spatial frames created using frames_spatial with frames created with frames_graph for animation, equal inputs must have been used for both function calls for each of the arguments m, r_list, r_times and fade_raster.

If argument path_colours is not defined (set to NA), path colours can be defined by adding a character column named colour to m, containing a colour code or name per row (e.g. "red". This way, for example, column colour for all rows belonging to individual A can be set to "green", while column colour for all rows belonging to individual B can be set to "red". Colours could also be arranged to change through time or by behavioral segments, geographic locations, age, environmental or health parameters etc. If a column name colour in m is missing, colours will be selected automatically. Call colours() to see all available colours in R.

Author

Jakob Schwalb-Willmann

Examples

library(moveVis)
library(move2)
library(terra)

data("move_data", package = "moveVis")
r <- readRDS(example_data(file = "basemap_data.rds"))

# align movement
m <- align_move(move_data, res = units::set_units(4, "min"))
#> Temporal resolution of 4 [min] is used to align trajectories.

# create frames
frames <- frames_graph(
  m, r, r_type = "gradient", fade_raster = TRUE, graph_type = "flow"
)
#> Processing input data...
#> Approximated animation duration: ≈ 7.52s at 25 fps using 188 frames
#> Extracting raster values per frame...

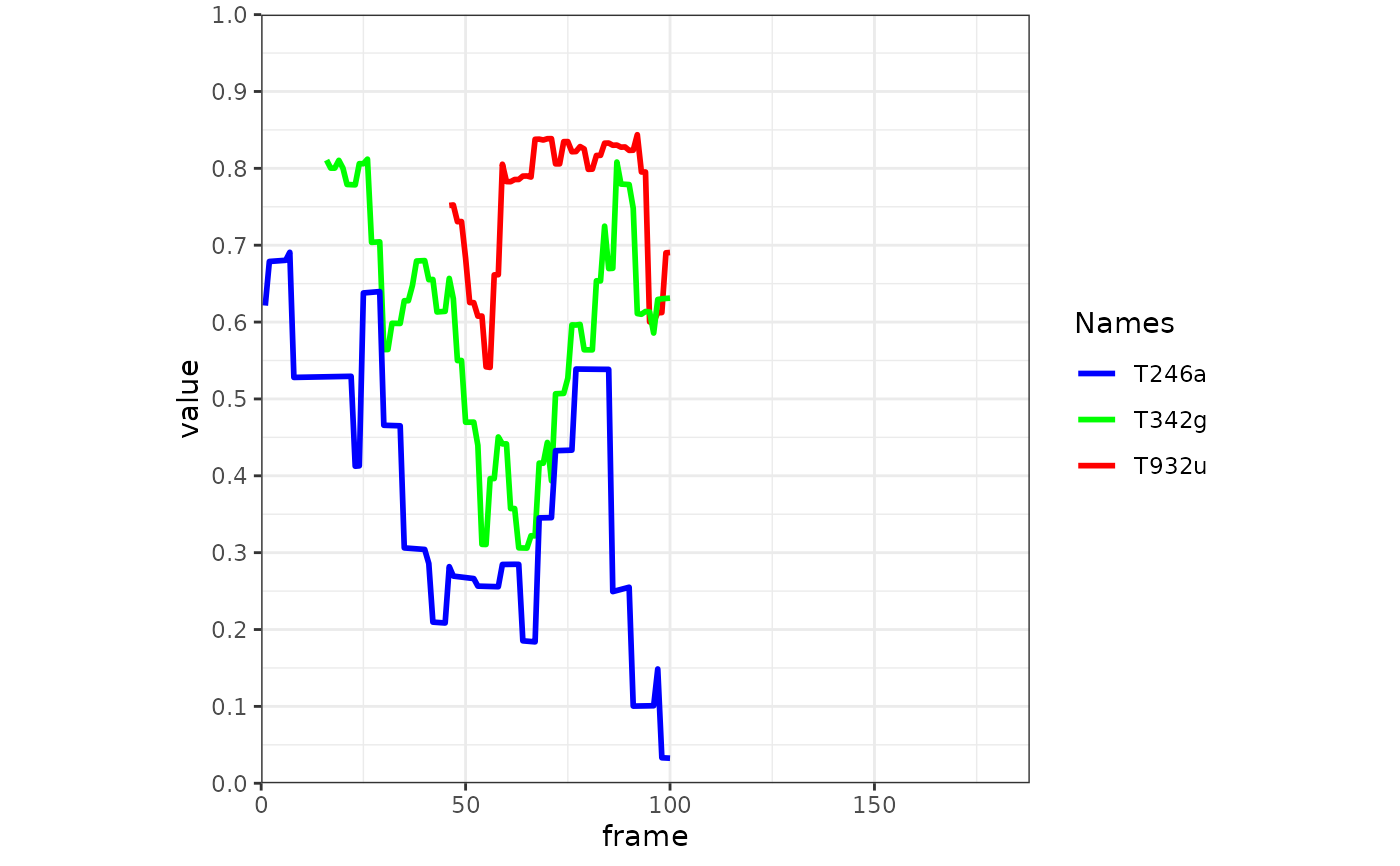

# take a look
frames[[100]]

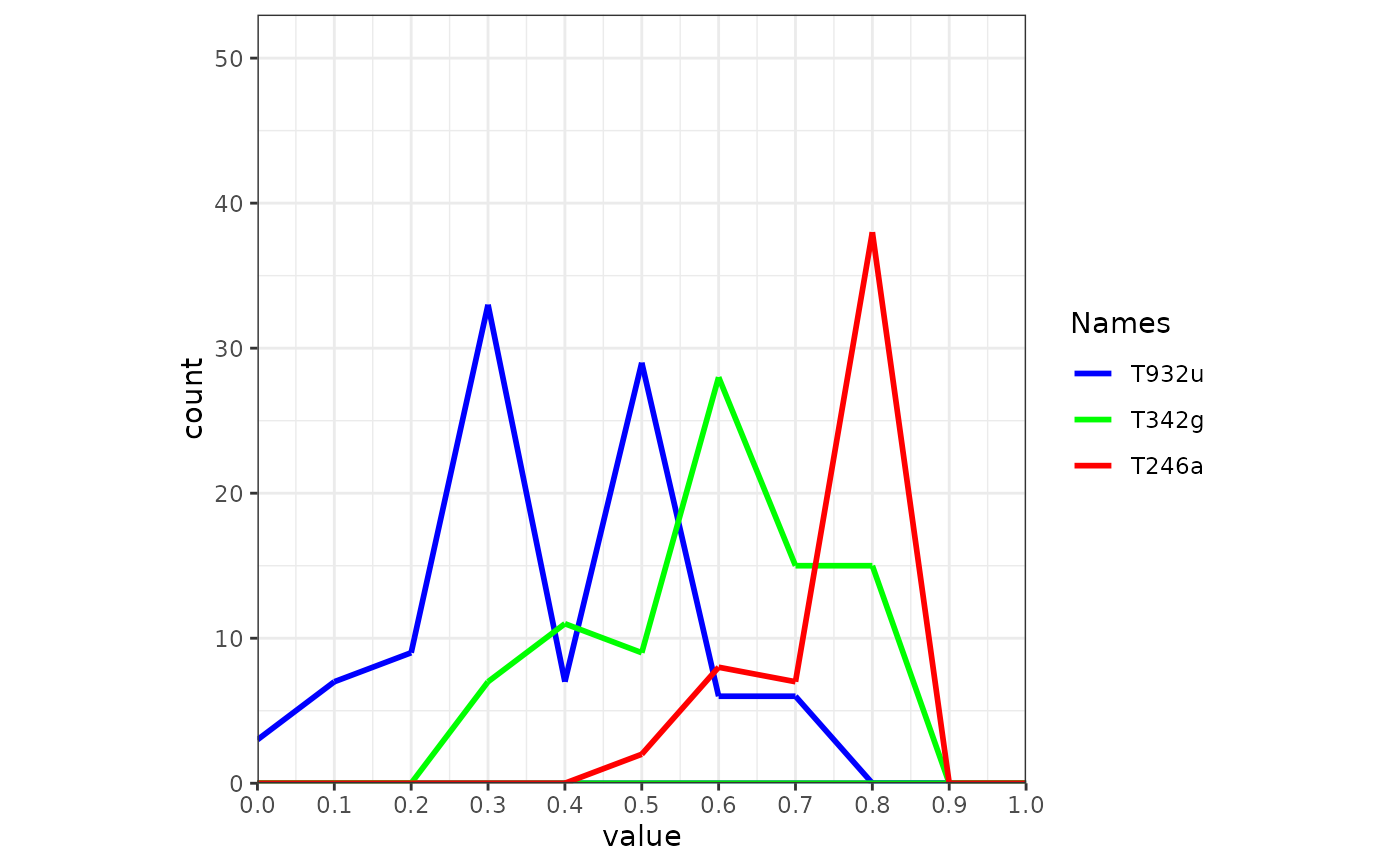

# make a histogram graph:
frames <- frames_graph(
  m, r, r_type = "gradient", fade_raster = TRUE, graph_type = "hist"
)
#> Processing input data...
#> Approximated animation duration: ≈ 7.52s at 25 fps using 188 frames
#> Extracting raster values per frame...
frames[[100]]

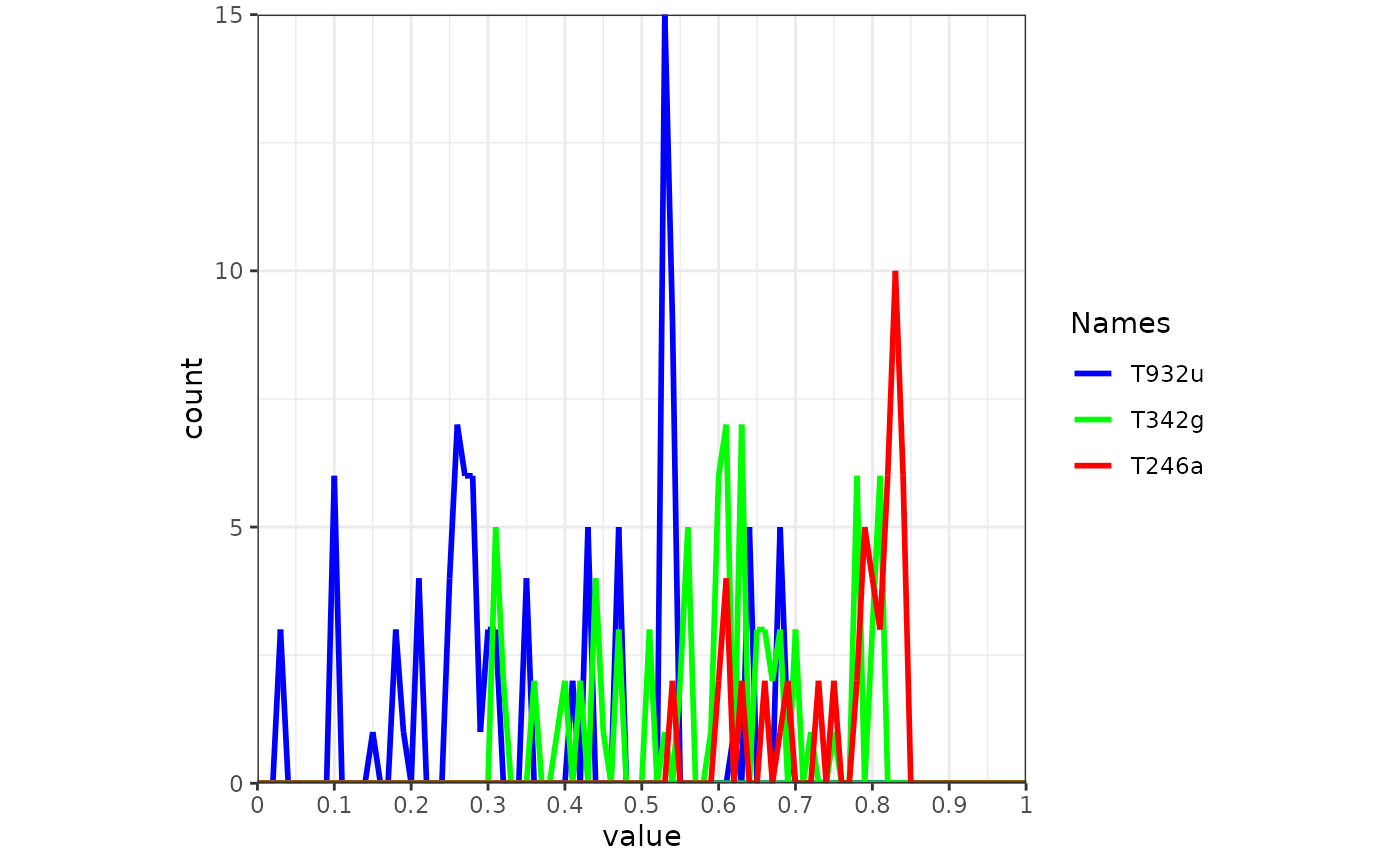

# change the value interval:
frames <- frames_graph(
  m, r, r_type = "gradient", fade_raster = TRUE, graph_type = "hist",
  val_by = 0.01
)
#> Processing input data...
#> Approximated animation duration: ≈ 7.52s at 25 fps using 188 frames
#> Extracting raster values per frame...
frames[[100]]

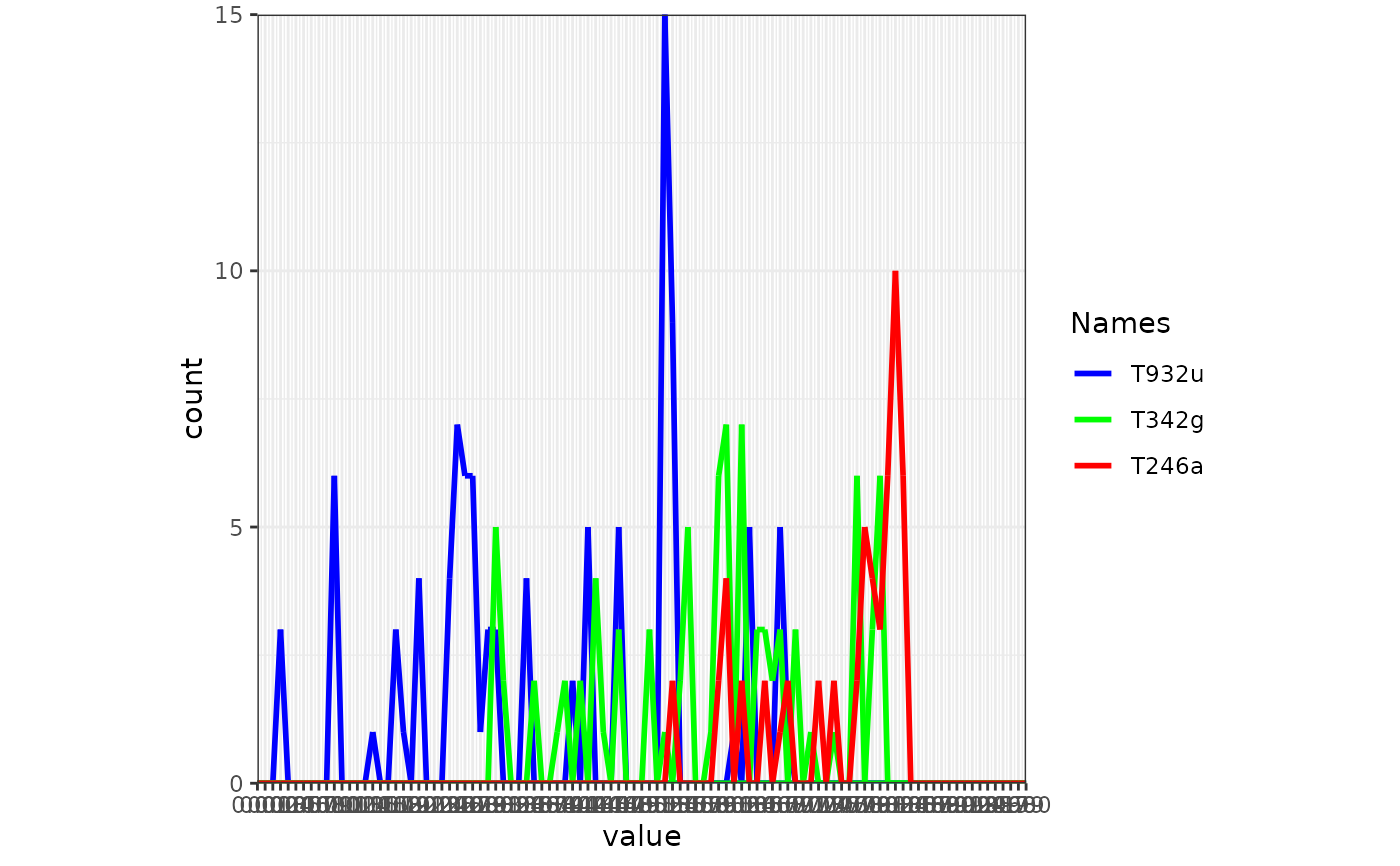

# manipulate the labels, as they are quite dense by replacing the scale
frames <- add_gg(frames, rlang::expr(
  scale_x_continuous(breaks=seq(0,1,0.1), labels=seq(0,1,0.1), expand = c(0,0)))
)
frames[[100]]


# to make your own graphs, use frames_graph to return data instead of frames
graph_data <- frames_graph(
  m, r, r_type = "gradient", fade_raster = TRUE, return_data = TRUE
)
#> Processing input data...
#> Approximated animation duration: ≈ 7.52s at 25 fps using 188 frames
#> Extracting raster values per frame...
